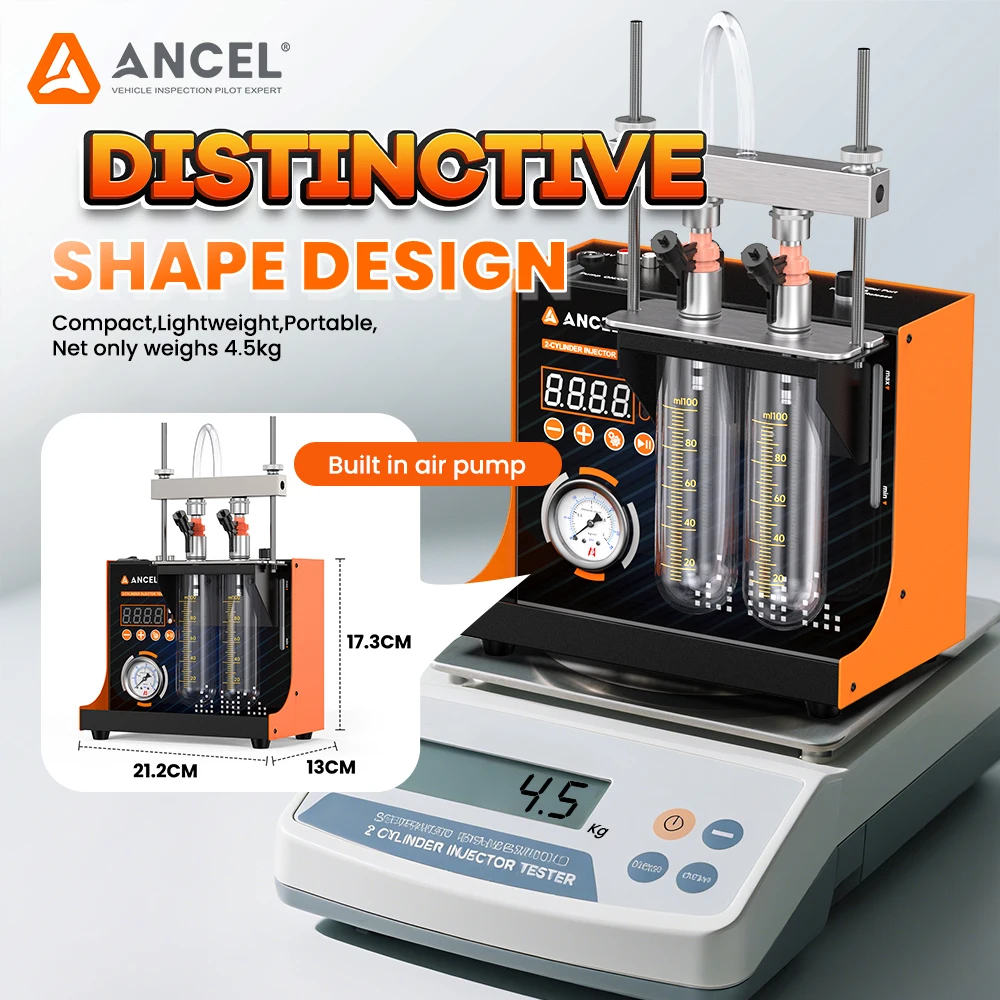

What are the advantages of ANCEL JC200?

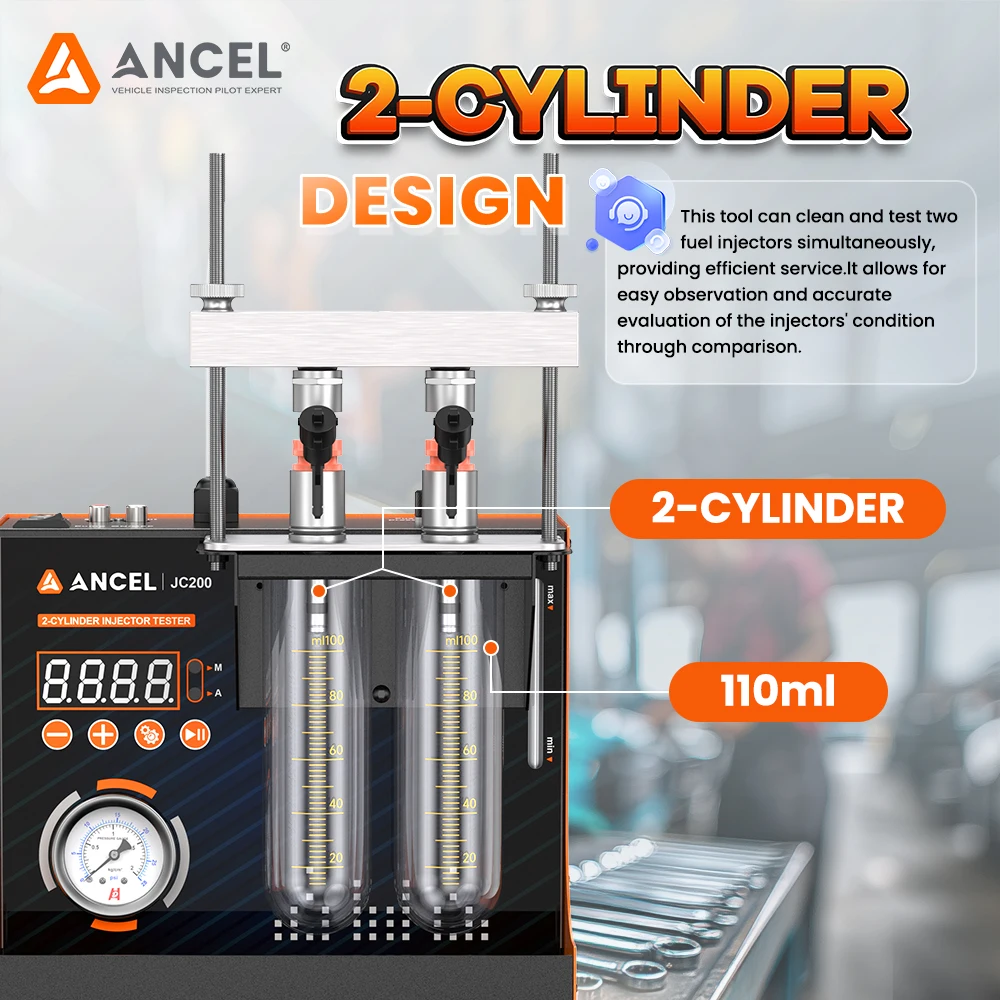

1‌.Dual pulse signal output‌ +‌Comparison test‌

ANCEL JC200 can provide ECU control signals to two injectors at the same time to drive the injectors to work. Single-channel equipment can only test one by one, which is less efficient
When testing two injectors in parallel, the key parameters of the two injectors, such as injection volume, atomization uniformity, and response speed, can be compared in real time

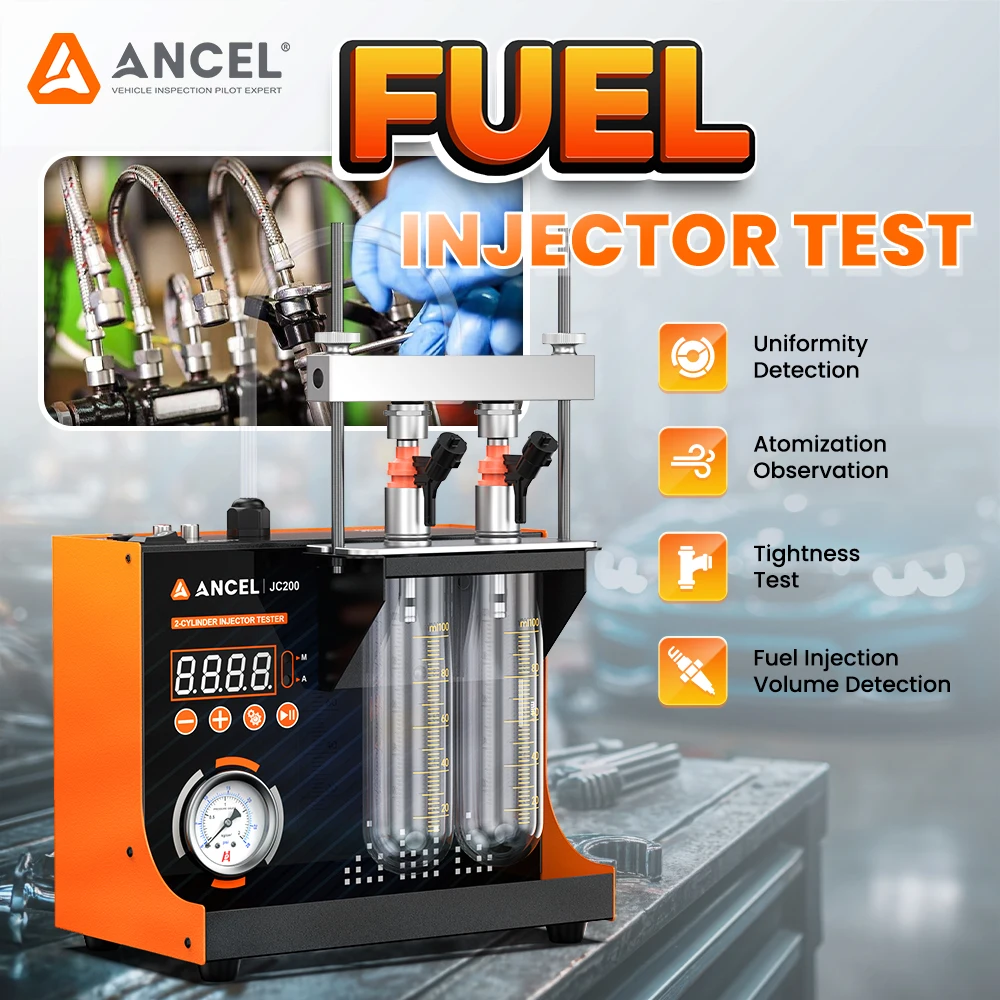

Main functions

1. Uniformity test: to check uniformity of the injections.
2. Atomization observation: with help of the backlight, you can observe the
   spray atomization situation of the injector in a comprehensive and careful
   manner.
3. Tightness test: it can detect the tightness and dropping of the fuel
   injector under working pressure.
4. Fuel injection volume detection: it can detect the fuel injection volume of
   the injector under specific working conditions.

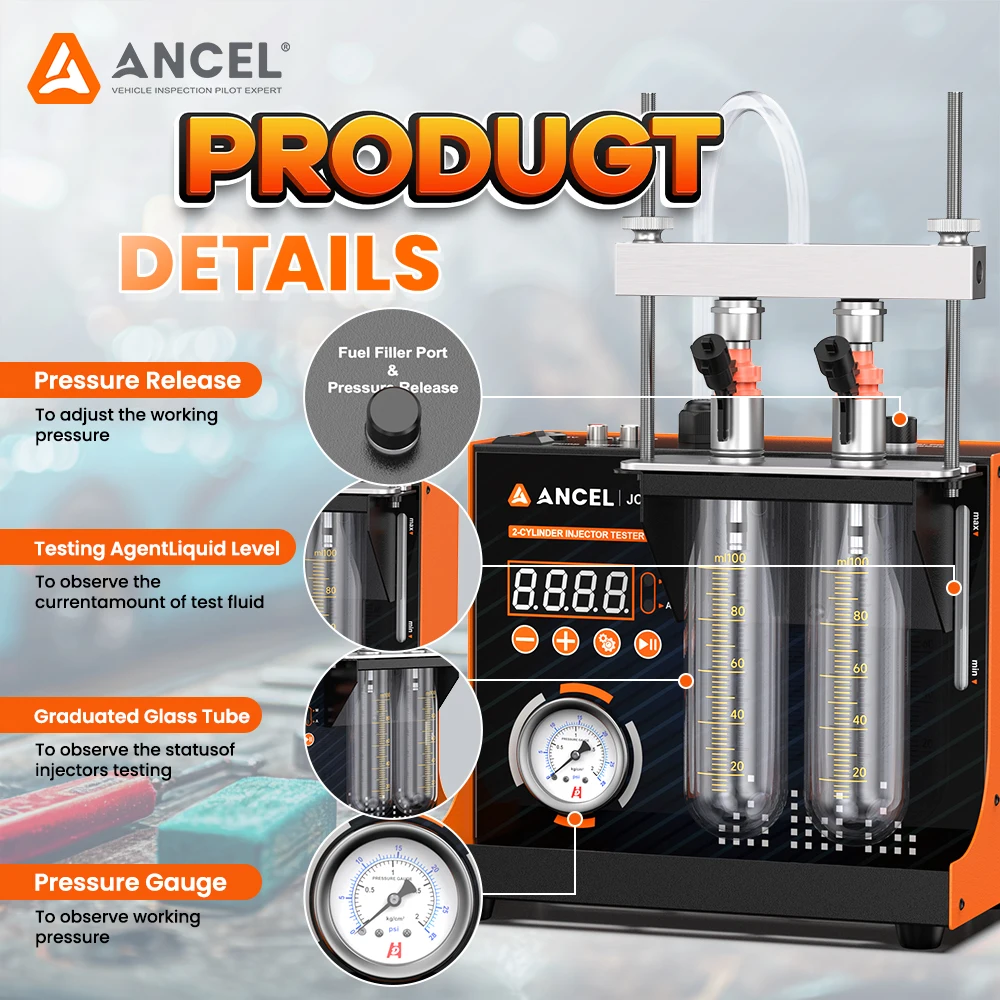

Main feature

• Low-cost solution of injection test.
• Use pressurized air to push test fluid, ensure stable pressure output,
  achieve consistence in test conditions.
• DC12V power supply, enhance portability of the product.
• The oil tank liquid level is displayed visually, and the test agent can be
  recycled.
• Bright background light, you can clearly see the various situations of the
  fuel injector when it is working.

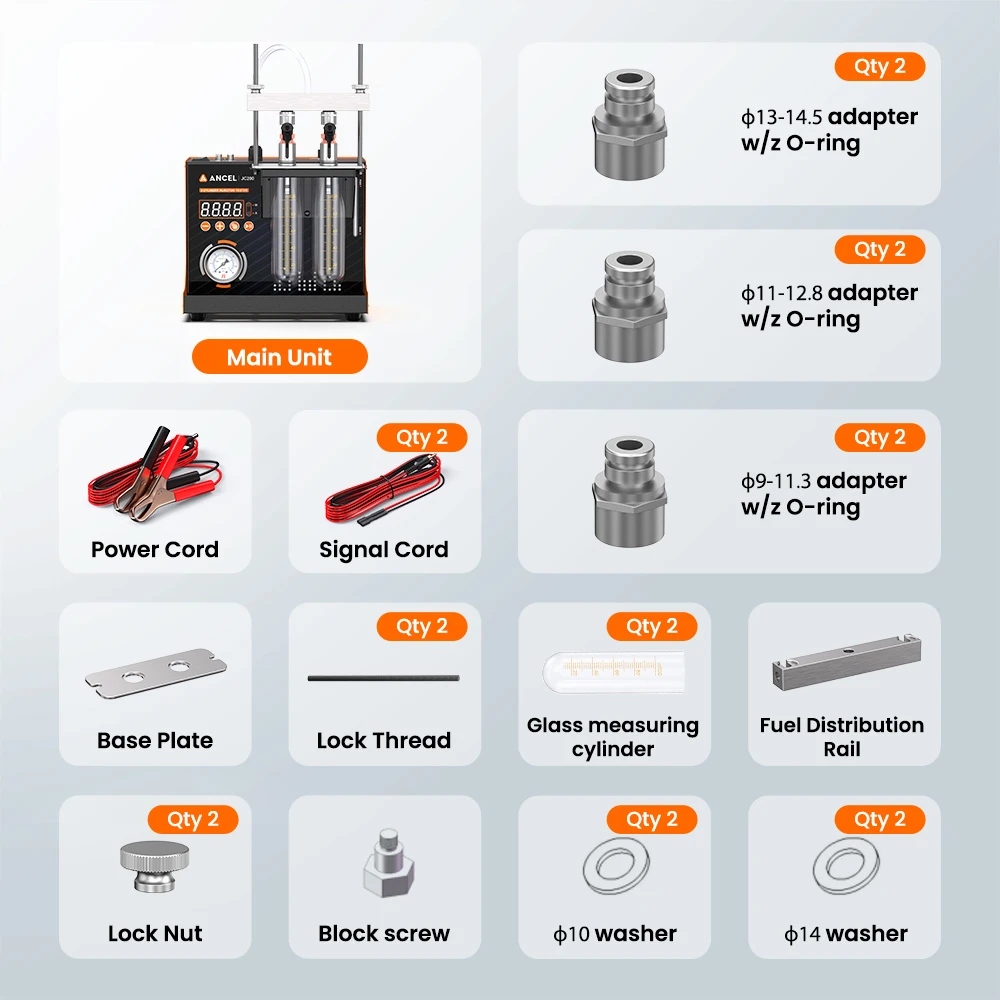

• Replaceable composite joints for different injector type

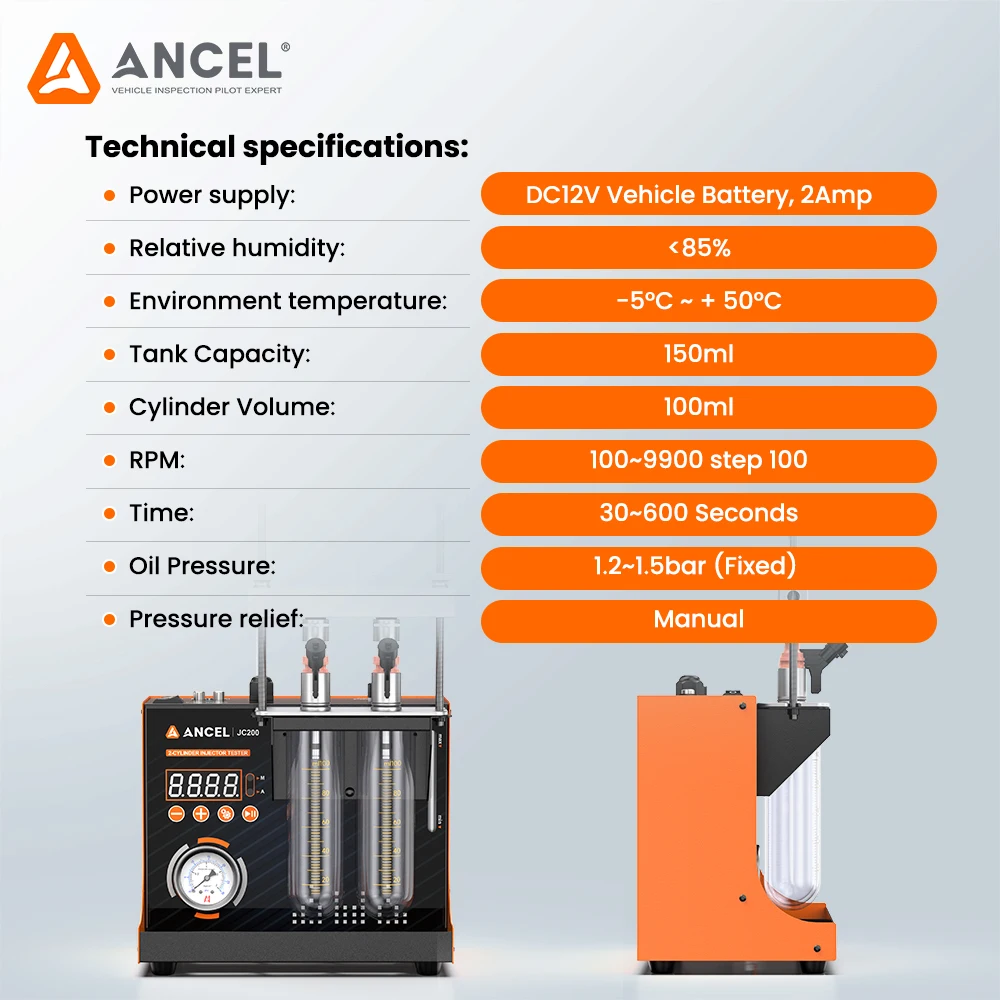

Technical specifications

Power supply: DC12V Vehicle Battery, 2Amp
Relative humidity: <85%
Environment temperature: -5oC ~ + 50oC
Tank Capacity: 150ml
Cylinder Volume: 100ml
RPM: 100~9900 step 100
Time: 30~600 Seconds
Oil Pressure: 1.2~1.5bar (Fixed)
Pressure relief: Manual
