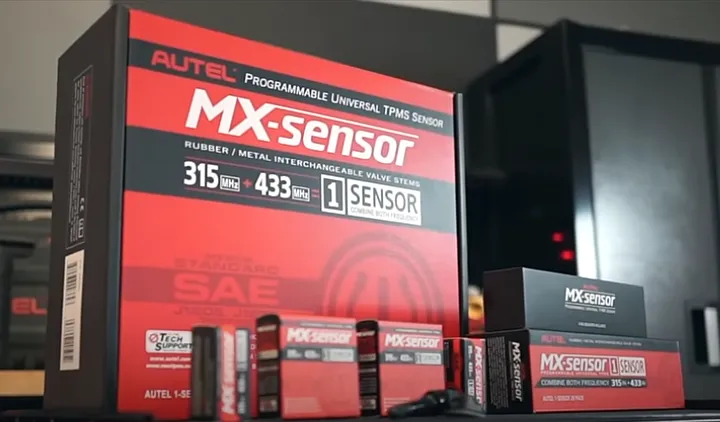

MX-Sensor Combined sensor (315 & 433MHz), the programmable universal sensors, offered in Clamp-in and Snap-in options, is smart and efficient, specially built for sensor replacement to perform like OE sensors, in terms of signal interval, durability and functionality, supporting up 90% of North American, European and Asian vehicles and covering over 98% of all OE sensors on the market. The MX-Sensor solution will greatly simplify your inventory management and lower investment and sales loss.

FEATURES

• Built to perform like OE sensor, in terms of signal, durability and functionality
• Automotive battery grade to meet severe weather conditions
• High-precision air valve to prevent air leakage
• Replaceable aluminum valve stem is anodized for corrosion resistance (for Clamp-in sensor)
• Robust clamp-in pivoting stem design allows for 0-35 degrees angle adjustment to fit all types of wheels (for Clamp-in Sensor)
• Fast and simple assembly minimizes installation time.

SPECIFICATIONS

Battery Life		≥5 years
Operating Temperature		-40°C to +125°C
Storage Temperature		-40°C to +150°C
Operating Humidity		90%
Operating Frequency		315MHz & 433MHz
Pressure Monitoring Range		0 to 800kpa
Pressure Reading Accuracy		±10kpa
Temperature Reading Accuracy		±5°C
G Sensor Reading Accuracy		±15%
Transmission Power		5-8dBm
Battery		3.0V
Dimensions (W x H x D)		55.1*29.4*21.8mm (Clamp-in Sensor) 54.2*29.4*19.1 mm (Snap-in Sensor)
Weight (Without Valve)		18.5g (Clamp-in Sensor) 15.6g (Snap-in Sensor)
