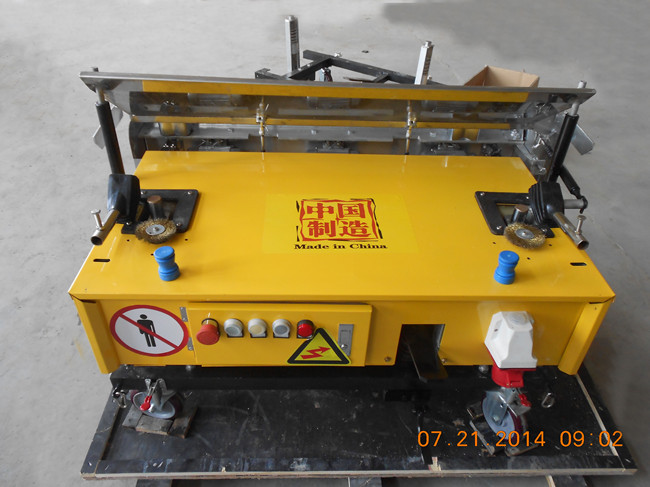

Automatic Wall Plastering Machine

1.Introduction Wall plaster machine
The machine has a huge market potential . After thousands of changes and experiments , we have made successfully the easy-to –use machine with much lighter which has much better evenness . It can plaster the internal corner and the joint seam .

2.Application Wall plaster machine
The machine is the best choice to plaster the concrete wall, the brick-concrete wall, the cavity wall, the light body brick wall and baking-free brick wall in the office building , the residential building and civil house with hard floor in it .
It can apply the limestone plaster, the cement mortar, foam mortar, gypsum etc .
The machine can work normally with the plastering thickness no more than 3cm and
height no more than 5m .

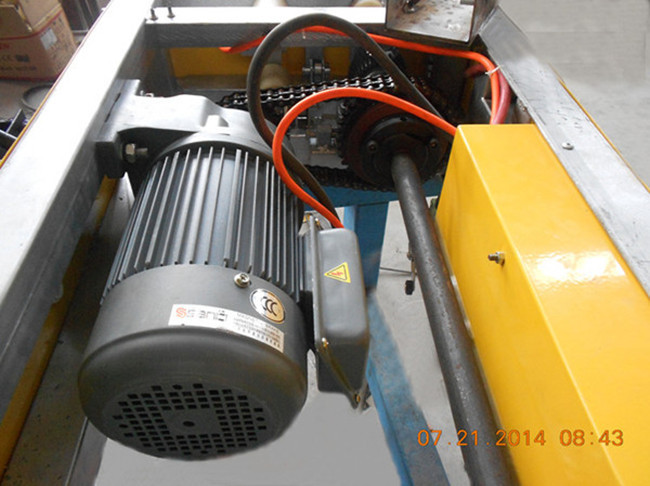

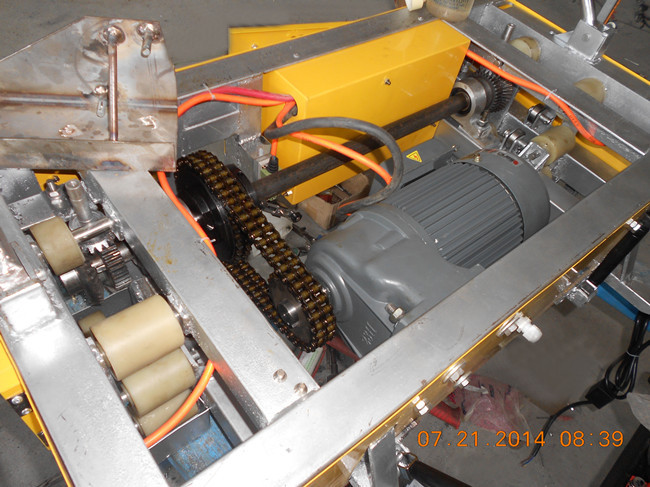

Main motor Wall plaster machine

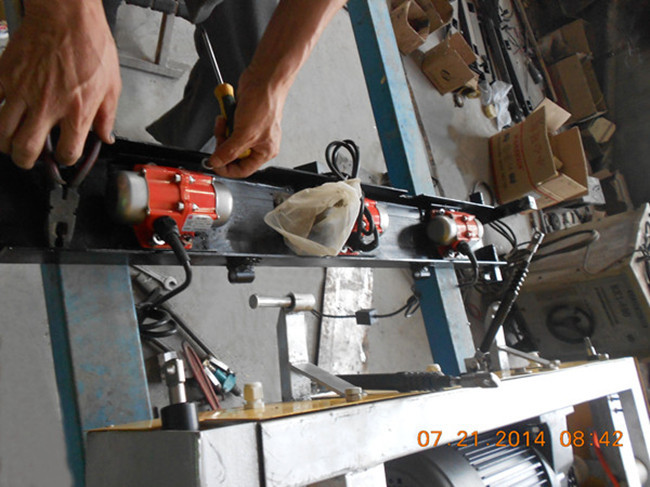

There vibration motor Wall plaster machine













Specifications Wall plaster machine

Model	JLWP-3	JLWP-4	JLWP-5
Plastering thickness	2-30mm	2-30mm	2-30mm
Plstering width	0.8/1/1.2m	0.8/1/1.2m	0.8/1/1.2m
Plastering height	2.5-3m	3-4m	3-5m
Operation efficiency	50-60m2/h	60-70m2/h	70-80m2/h
Voltage	220/380v	220/380v	220/380v
Power	2.2Kw	2.2Kw	2.2Kw

Packaging & Shipping Wall plaster machine

1. The machine volume :standard export wooden packing volume 0.8m3

2. The reinforcement :steel reinforced wooden box

3. The machine form our factory to port just need 1-3days , We provide customers with the highest quality products and services, the highest efficiency.
