Launch TLT240SB Two Post Lift

Home

|product|

Call +2348035614335 to order

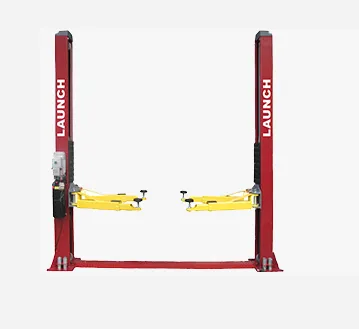

Launch TLT240SB Two Post Lift

₦3,500,000.00

Launch TLT240SB Two Post Lift (Rated Capacity: 4 Ton)The Launch TLT240SB Two Post lift is applicable for the lifting of SUVs, Vans and other vehicles up to 4 ton (4,000Kg) weight. It is a commercial grade, baseplate style car lift with symmetric (straight column) posts and symmetric arms.The TLT240SB symmetric arms and open top are perfect for lifting pickup trucks. Dual point lock release and durable chain driven cylinders used on the TLT240SB is a durable, time proven design, making the TLT240SB an excellent choice for the professional shop or the car enthusiast. Launch provides unmatched support and availability for its complete product line.

Features

Double Telescoping Screw Pads – Adjustable screw pads simplify vehicle loading with rubber pads for secure loading.
Stackable Pad Extensions – 3.5″ pad extensions are perfect for lifting around running boards and can provide additional lift height in some applications. (Set of Four Included)
Rubber Door Guards – Full coverage door guards protect door damage from contact with the lift.
Hose Guards – Protect hydraulic hoses and give the lift a clean, finished look.
Dual Point Lock Release – Allows technicians to disengage safety latches independently.
Bilateral manual safety unlocking system
Heavy-Duty Arm Restraints– Durable steel gears, pins, and springs for trouble free operation.
Cable and oil pipes are fully concealed
Double hydraulic cylinder and high strength chain drive for stable and smooth lifting and lowering
Wire rope equalization system forces synchronous movement of the two carriages and effectively prevents vehicle from tilting
24V low voltage control box (IP54 level) ensures operator’s safety
24V cylinder travel limit switch effectively protects cylinder and extends its lifespan
More lifting pads with different heights meet the requirements for light lorries and SUVs
Passed 115% dynamic loading test and 150% static loading test

Specifications

Rated load: 4, 000Kg
Lifting height: 1, 850mm
Initial height: 110mm
Lifting time: <= 50s
Lowering time: >= 20s <= 40s
Passing width: 2, 486mm
Overall width: 3, 370mm
Overall Height: 2, 860mm
Minimum Ceiling Height: 3, 048mm
Low Pad Height: 101mm
Maximum Lift Height: 1, 854mm
Width Between Columns: 2, 743mm
Drive Thru Width: 2, 489mm
Arm Reach Front: 800mm – 1, 199mm
Arm Reach Rear: Same
Maximum Load Per Arm: 1, 020kg
Motor Voltage: 3 phase/380v or Single phase/220v
Operating Pressure: 2, 750 PSI
Shipping Weight: 655Kg
Shipping Dimensions: 2, 870mm x 546mm x 1, 092mm
Motor Power: 2.2Kw
Working noise: <= 70dB
Working oil pressure: 18MPa
