Star Diagnosis Connect 4 DoiP (Version: March 2021)
The new generation Mercedes Benz diagnostic equipment Star Diagnosis Connect 4 is the latest for all current and new coming MB vehicles.



Top 4 Reasons to Get MB SD Connect C4 DOIP PLUS:

1. The new SDconnect C4 (1:1 clone of the original) is able to work for DoIP. It’s the only C4 that supports ethernet communication (DoIP). Tested no issues on new mercedes with doip.
2. Wireless connection is stable. C4 is connected automatically to WLAN for diagnostic tests.
3. Good Quality. It’s waterproof, shockproof and tamper proof.
4. Supports both 12V Cars and 24V Trucks.

What is DOIP?

DOIP is ISO 13400 diagnostic protocol
ISO 13400-1:2011 describes the general use cases and communication scenarios which are covered by an Internet Protocol-based vehicle communication standard. Each use case drives specific communication capabilities of the vehicle communication interface, for instance in order to be interoperable in an existing computer network.

The diagnostic communication over Internet Protocol (DoIP) protocol supports the standardized service primitive interface as specified in ISO 14229-2.

The descriptions in ISO 13400-1:2011 cover different application layer implementations, such as:

enhanced vehicle diagnostics (system diagnostics beyond legislated functionality, non-emissions-related system diagnostics);
WWH-OBD (World-Wide Harmonized On-Board Diagnostics) as specified in ISO 27145-2 and ISO 27145-3.

Mercedes and Land Rover JLR use this new Diagnostic Protocol.



When do you need DOIP Device?

When you test new Mercedes models like w222 w205
In Audio\Comand section you can find DoIP test page.
If cable is DoIP you will see green mark that cable is Ok.
Xentry will prompt you that proper cable must carry yellow marks.



Doip MB SD C4 Vehicle List-Support MB Cars After Year 1989

Passenger Car Support List:

A(176),  A(169),  A(168),  B(246),  B(245),  CLC(117),  C(204)  C(203),  C(202),  190(201),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),  S(220),  S(140),  S(126),
E(207),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),  CL(215),  CL(140)  SLK(172),  SLK(171),  SLK(170),  SL(231),  SL(230),  SL(129),  SL(107),  SLS(197),
M(166),  M(164),  M(163),  G(463),  G(461),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),S(220),  S(140),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),
CL(215),  CL(140),  SLK(172),  SL(231),  SL(230),  SL(129),  SL(107),SLS(197),  M(166),  M(164),  M(163),  G(460),  GL(164),  GLK(204),  R(251)

Van Support List:

MB 100(631),  T1,  SprinterIII,  SprinterII,  SprinterI,  Sprinter900,  Citan,  Vito(639),  Vito(638), V(638),   Viano(639),  T2,  Vario,  Vaneo(414)

Truck Support List:

Actros963/4,  Actros2,3,  AtegoIII,  AtegoII,  AxorII,  Eonic,  Zetros,  Actros,  Atego Light,  Atego Heavey,  HPN M96,  Atron,  HPN M2000,  SKL,  FSK,  Further model series

Unimog Support List:

U20,  UGN,  UHN

Bus Support List:

TRAVEGO,  INTOURO,  INTEGRO,  CITARO,  CAPACITY,  CITO,  TOURISMO,  O350/O403, CONECTO,  O404,  O405-O408,
Minibus,  OC500,  TOURO,  TOURINO,  MBC,  MULITEGO,  O500,  O500/OH,  OH,  OH368,  OF,  OF384,  LO,  O400, FURTHER MODEL SERIES

Super Sports Car Support List:

SLR(199)

The new c s-series to the factory installed conversion:

4, 222, 205 installing fragrance systems

5, 2015, paragraph 212, changing traffic light permanently lit

6, 212, 204, adding electric ear

7, 222 205 HU5 traffic solution for DVD video

8, W164 closed recycling system

9, W205, retro atmosphere lamp

10, 205, 222 adding electric ear electric trunk, the trunk kicking function

11, 166, how to modify the gateway set up codes

12, 166 meters finished degrees Fahrenheit to degrees Celsius

13, US standard maintenance mileage be set to the number of miles

14, 164 disabled diesel particle filter regeneration system

15, 166 canceled urea

16, 205 added electric rear vision mirror

17, HU45 regional Chinese resolve lock

18, W204 W166 foldable rear-view mirror

19, change the 166 on board, display in Celsius

20, W212 disable ECO configurations

21, activate the HOLD function ABR2XT

22, open W22 looked up appears

23, the AMG sports package enabled W212

24, the air bag computer reset factory State W166

25, to increase the brightness of the color instrument cluster s W222

26, 722.97g to install the steering wheel shift paddles

27, W221 AMG W216 dashboard style

28, airbag ECU unlock W204 212

29, disabled child seat recognition sensors W221

30, opening rear fog lamps as spare brake lights with W222

31, increasing engine power MED177

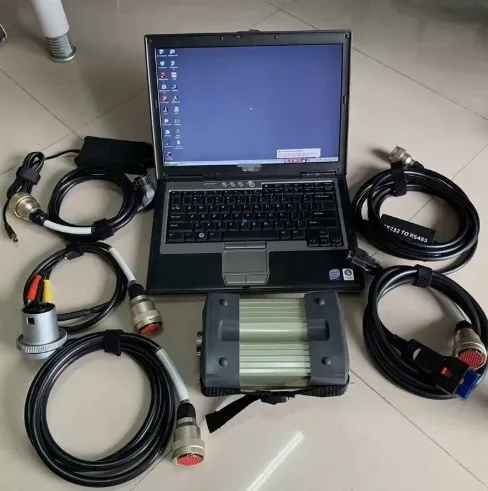

Package list:
1pc x Multiplexer
1pc x OBDII 16PIN Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 4PIN Cable
1pc x Lan Cable
